Wednesday, September 28, 2016

layers, colors, boolean, gumball review and more handouts

Cool Hunting Video: Barry X Ball from Cool Hunting on Vimeo.

Kinematics Cloth app from Nervous System on Vimeo.

layers and closed polysurfaces from arthur hash on Vimeo.

boolean from arthur hash on Vimeo.

Hello Gumball. from Rhino Tutorials on Vimeo.

Gumball review: control shift to sub-select, drag tap alt to copy, drag press control to extrude, align to cplane

Solids: Sphere, cube, ellipsoid, torus, cone,

Surfaces: planes from points, planes from lines

Extrude: From curve, From Surface

Boolean: Union, Difference, intersection

Fillet/Chamfer: Set Radius

Helix spiral: DNA

Curve from Object: Project, silhouette, Extract isocurve, Extract curve, and Extract wire frame

Trim surfaces: Project to surface

Extrude: To point, straight, tapered

Loft:

Chamfer surfaces:

Fillet surfaces: multiple radius

Text object: curves, surfaces, solids

Object properties: material>basic, texture, gloss, transparency, environment

Control points: rebuild, U and V

Selecting control points: U and V

Nudge:

Objects and tools from arthur hash on Vimeo.

Wednesday, September 21, 2016

3D!!!

Amy Hauft

http://amyhauft.com/installations/counter-re-formation/western-michigan-university/2

http://www.kendallbuster.com/

Building geometry/Rendering/new tools

REVIEW

Saving files: Save as, .3dm, .AI etc.

Files from templates: inches, feet etc

Rhino Options: Personalize how Rhino looks and works

Units: Standard or Metric

Grid: Grid size and spacing

Appearance: Colors (background, major line, minor line etc.)

Files: AUTOSAVE

General: # of UNDOS(set to 100)

Mouse: MIDDLE MOUSE BUTTON default. popup

KEYBOARD: (MAC USERS CHANGE HERE)

Toolbar layout Fly-out toolbar (Main1, main2)

Viewport layout: left click hold

Viewport view: right click hold, wire-frame, shaded, rendered, ghosted, x-ray

Set view top, front, right and isometric

OSNAP: end, near, point, mid, cen, int, perp, tan, quad and knot

SNAP:to grid setting up snaps with the grid

ORTHO: quick key shortcut: F9

HISTORY: quick key shortcut: F2

HELP: quick key shortcut: F1

Line: Polyline, line from center

Circle: from radius, diameter, 3 points

Rectangle: from corner to corner, center, 3 points

Ellipse: from center, diameter

Polygon: (numb sides) from center to point, from center to edge, two points, star

CPC: Curve from interpolated points

Arc: from center, end, start and radius.

Entering Units: 0,0 =origin X,Y Unit<angle 10<45

Color: Changing object display colors

Copy: Copy from reference object

Move: Move from reference object.

Rotate 2D: Rotate copy

NEW TOOLS

Gumball: Alt drag copy, units
Join: closed polylines
Explode: open polylines
Move: using points
Mirror: Along axis
Trim: Trimming objects, dynamic trim
Offset: Set distance, through-point
Array: Polar, rectangular, Along curve,
Layers: Creating layers, changing layers, colors
Group: Ungroup, Add to group, remove from group
Sub-select:
Object selection: Select by type, invert select
Analyze: length, angle, radius, area
Align: center, top, right, left, distribute
Hide: Show
Lock: Unlock
Object properties: Color, label, group
Control points: rebuild, U,V, Degree
Curve Boolean: Delete, used, all
Scale 2D, Scale 3D: Scale from reference object
Fillet: radius
Chamfer: Coordinates
Illustrator: Stroke/Fill, drawing objects, document setup,colors,fill/raster versus vector line, grid, snaps etc, Live trace, exporting DWG

CVS from arthur hash on Vimeo.

CVS from arthur hash on Vimeo.

CVS from arthur hash on Vimeo.

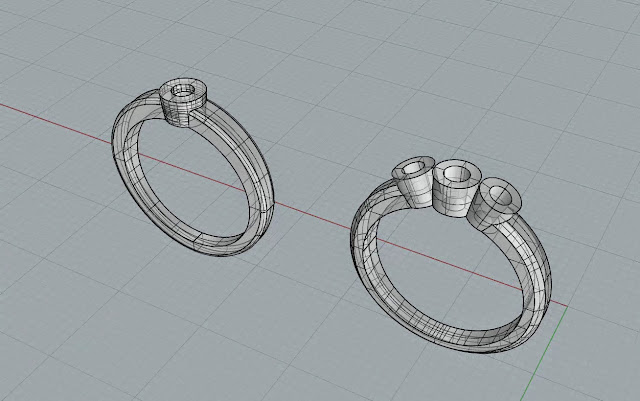

Project 1 Digitize

Digitize (Due Oct 12th)

Assignment brief:

To better understand how Rhino works you are to find an image of a piece of jewelry that fits into a specific historic jewelry time period (IE:Victorian, modernist, art deco, Berlin iron jewelry etc). “Digitize” it Rhino using only the photos you find. Once this copy has been “digitized”, create two accompanying objects that share the same aesthetics to create a set of jewelry. For example: if you copy a brooch, make a pair of earrings and a ring to match. (one pair of earrings do not count).

Learning outcomes:

Students will use modeling skills obtained through previous exercises to model a copy of a “found” piece of historical jewelry. Students will have better understanding of the pros and cons of a digital workflow by duplicating an existing piece of jewelry.

Skills list:

Basic, intermediate and advanced Rhino modeling techniques.

Concept:

Duplicate and iterate jewelry from reference photos. You must use photographs or hand renderings.

Research:

Visit the library and find photographs of jewelry. Use the reserved material in special collections to find reference material. Try to find multiple views of the piece you intend to copy. This will provide more visual information and a better understanding of scale and form.

Questions/Prompts:

How can duplicating a piece of jewelry help inform your digital modeling workflow?

Can you see trends in jewelry from your research?

How can symmetry solve wear-ability issues?

What role does identity play in your piece?

What do you have to borrow to make a new object part of a set?

Expectations:

Model a copy of found piece of jewelry. Layout drawings are expected. All layout drawings should be printed in full color on 8.5 x 11 paper and turned in on the day the project is due.

Project 2 CASE by CASE

CASE by CASE (three week project)

Assignment brief:
As humans we naturally put things in to categories, compartmentalize our surroundings and even organize objects within objects. A container is usually defined as an object that can be used to hold or transport something. Design and fabricate a wearable container. Choose an object that, in your opinion needs a case/container. Use Rhino, laser cutting or 3D printing to create a housing/external case that changes the original objects meaning.

Learning outcomes:
Students will use Rhino and 3D printing model and fabricate a wearable that
contains an object. Students will
have better understanding of measuring and modeling by accurately duplicating a real-world object.

Skills list:
Advanced Rhino modeling techniques and 3D printing

Concept:
Learn how to accurately model an object and create a holder or case for that object.

Research:
Do your research. Find packaging. Look at suitcases/pelican cases. Look at blister packs. How much volume
of material is needed? Look at high-end liquor packaging. What happens when the contents are consumed?

Questions:
How would you define a container?
Does making a container for an object make it precious?
How can a container be more than a container?
What would dictate the outside shape of a container?
What are you containing?
What percentage of an object needs to be covered in order to define something as “contained”?
When a container acts as a protective covering why aren’t objects designed to require a container?
Does your object have to come out? OR is it a break glass in case of an emergency type of object.

Expectations:
Model a copy of found piece of jewelry. Layout drawings are expected. All layout drawings should be printed in full color on 8.5 x 11 paper and turned in on the day the project is due.
